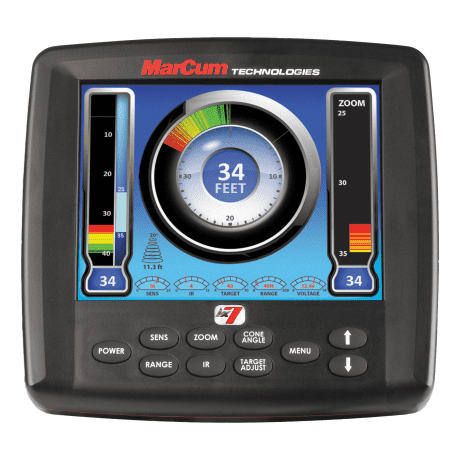

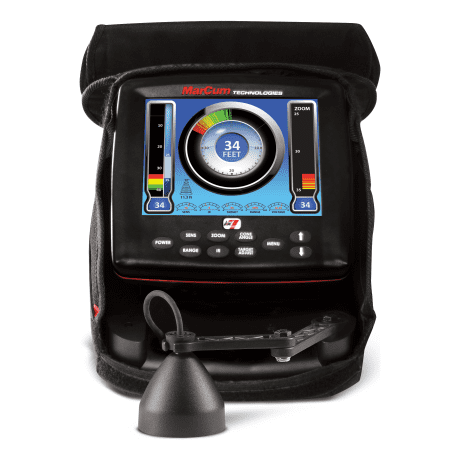

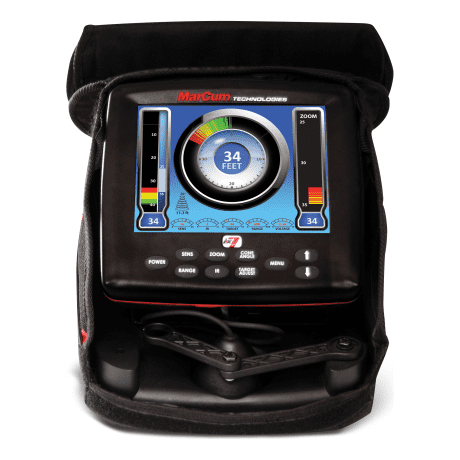

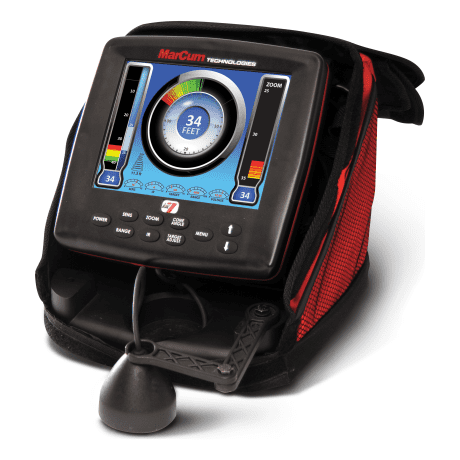

MarCum® LX-7 Lithium LCD Sonar System

From the ice age to the digital age, MarCum’s vanguard LX-7L Lithium LiFePO4 has forever transformed the game of hunting fish on frozen water. Over a decade of cutting-edge sonar design in the making, the radically innovative LX-7L Lithium LiFePO4 has been built with the optimum blend of sonar DNA from MarCum LX Flasher and Digital Fish Finding technologies. A true breakthrough in “big picture” ice sonar, LX-7L Lithium LiFePO4 presents anglers with an incredible interactive ice fishing experience in a panoramic 8-inch LCD environment (four vividly rich colour palettes included.) Multiple industry-exclusive features provide a dazzling array of precious fish-finding Intel. Fully user-defined on-screen “Dashboard” displays digital depth, battery voltage, range, gain, interference rejection (IR), target adjust, or any combination thereof. LX-7L Lithium LiFePO4 “Multifaceted Sonar Display” also gives anglers fully customize window views, including water-column vertical, vertical zoom, flasher-dial and traditional horizontal LCD graph displays. Sonar Footprint technology displays scan area at any depth, with either 8 degree or 20-degree transducer cone angles. This provides a keen awareness of fish targets relative to the transducer, and your lure; also helps prevent adjacent (non-MarCum) sonar users from picking up interfering LX-7L Lithium LiFePO4 pulses by avoiding the “footprint” area. All LX-7L Lithium LiFePO4’s come preloaded with the full menu of MarCum’s patented features, as well as a USB port for firmware upgrades.
Dimensions: 11-1/2" x 11-1/2" x 11-1/2" (29.21 cm x 29.21 cm x 29.21 cm)
Display: 8″ Flat Panel Colour LCD, 4 Colour Palette Options
Power: 4800 Watts Peak to Peak Output Power
Cone Angle: Dual Beam 8/20 Degree Ice Transducer
Target Separation: Down to 1/2-Inch
Interference Rejection: Patented 12-Step Interference Rejection
Zoom: Automatic Bottom Lock
Selectable Zoom Windows:
 • 5′, 10′, 20′, 40′
 • Patented Infinitely Adjustable Zoom
 • (Zoom anywhere throughout the water column)
Resolution: 800 x 600 Pixels
Cable: 8 ft. Transducer Cable
On Screen Display: Any Combination of Vertical, Vertical Zoom, Flasher, Graph & Graph Zoom Split Screen
Additional Features: 300′ Dynamic Depth Capability, Infinite Scale from 10′ and Deeper in 1′ Increments Upgradeable Firmware Exclusive Dynamic Depth/Range Exclusive Sonar Footprint Display Adjustable Scroll/Ping Rate Target Adjust Image Magnifier Adjustable Night-Vision Backlight
Weight: 12.65 lb. (5.73 kg)

Comes With:
Battery: Rechargeable LiFePO4 12-Volt 10-Amp
Charger: 3amp Hour Rapid Charge Charger

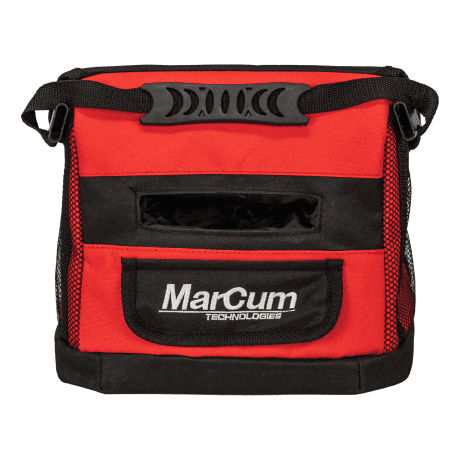

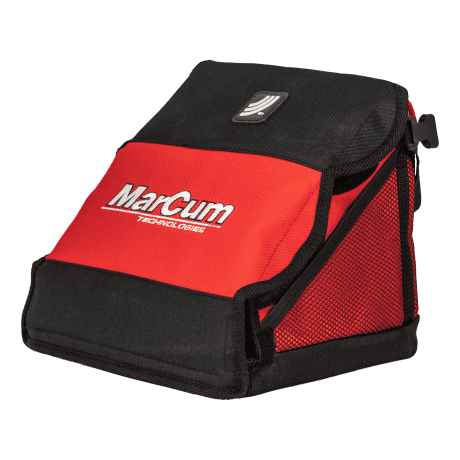

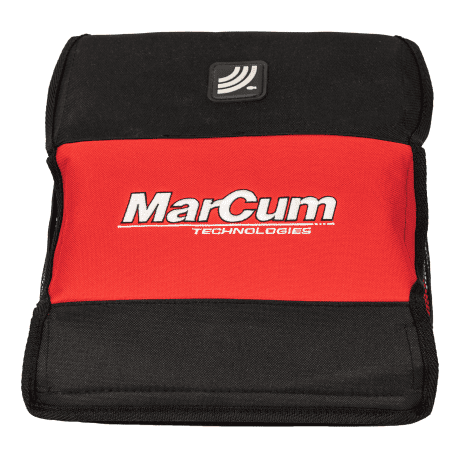

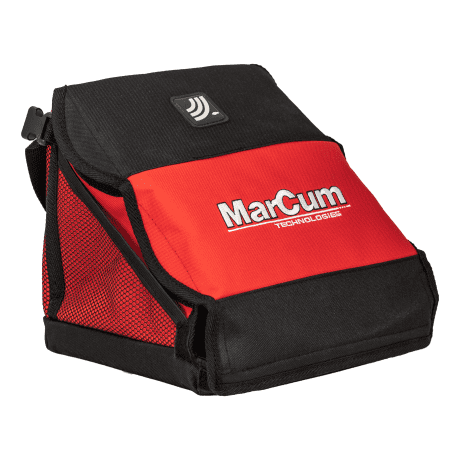

Storage: Deluxe Padded Red Soft Pack
Screen Protection: Snow Shield Faceplate
Warranty: Two Year System Warranty

Shipping Restriction - this item is a dangerous good and must be shipped via ground transportation to a physical address (Cannot ship to a PO Box or Rural Route). An additional shipping charge may apply.

Note: This item must be shipped ground only and cannot be shipped expedited or express.
